Features
- Designed especially for women. No need to aim.
- Men can stand. The only urine diverting toilet where this is possible.
- Airtight and energy efficient.
- Massive airflow ensures zero odor.
- No odor even when using! (Open hatch becomes a giant air intake. Air is getting sucked in to the toilet, not escaping).
- Not gross to empty. 1-2 scoops of shavings may be optionally added prior to opening the toilet (see picture).
- BEST WARRANTY IN THE INDUSTRY. 6 YEARS! (3 years on fans. Fans are inexpensive and easy to replace).
Watch this video to find out how it works!
Description
Thinktank Waterless Toilets™ have numerous advantages, and will save you money when compared to other toilets.
- A unique and patented trap door design makes the toilet much easier to use.
- Men can stand when urinating – in contrast to other all other urine diverting toilets where men must sit..
- Women do not have to aim or adjust their position on the toilet.

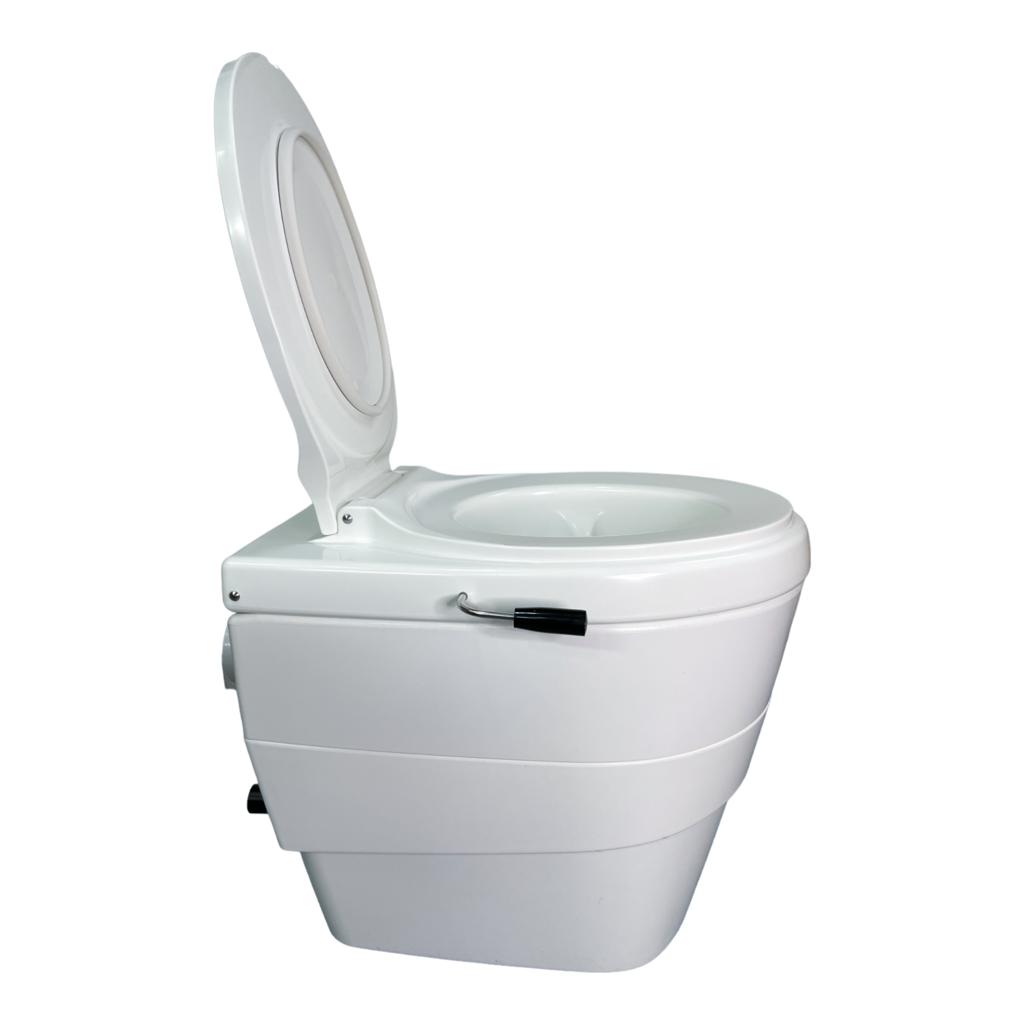

- Thinktank Waterless Composting Toilets are virtually airtight under normal operating conditions! They draw ventilation from outside – in contrast to other toilets which draw ventilation air from the bathroom area. With other toilets, you are rapidly blowing expensively heated or cooled air outside. The Thinktank Waterless Composting Toilet, through its patented airtight design, draws all ventilation air from outside, circulates it through the toilet, and exhausts the same air outside. This saves a great deal of money over time, is far more efficient, and environmentally friendly. Please see the photo of the lid, showing the soft silicone tubing which pushes down into the bowl when closed – creating an airtight seal. No other toilet has this patented technology!

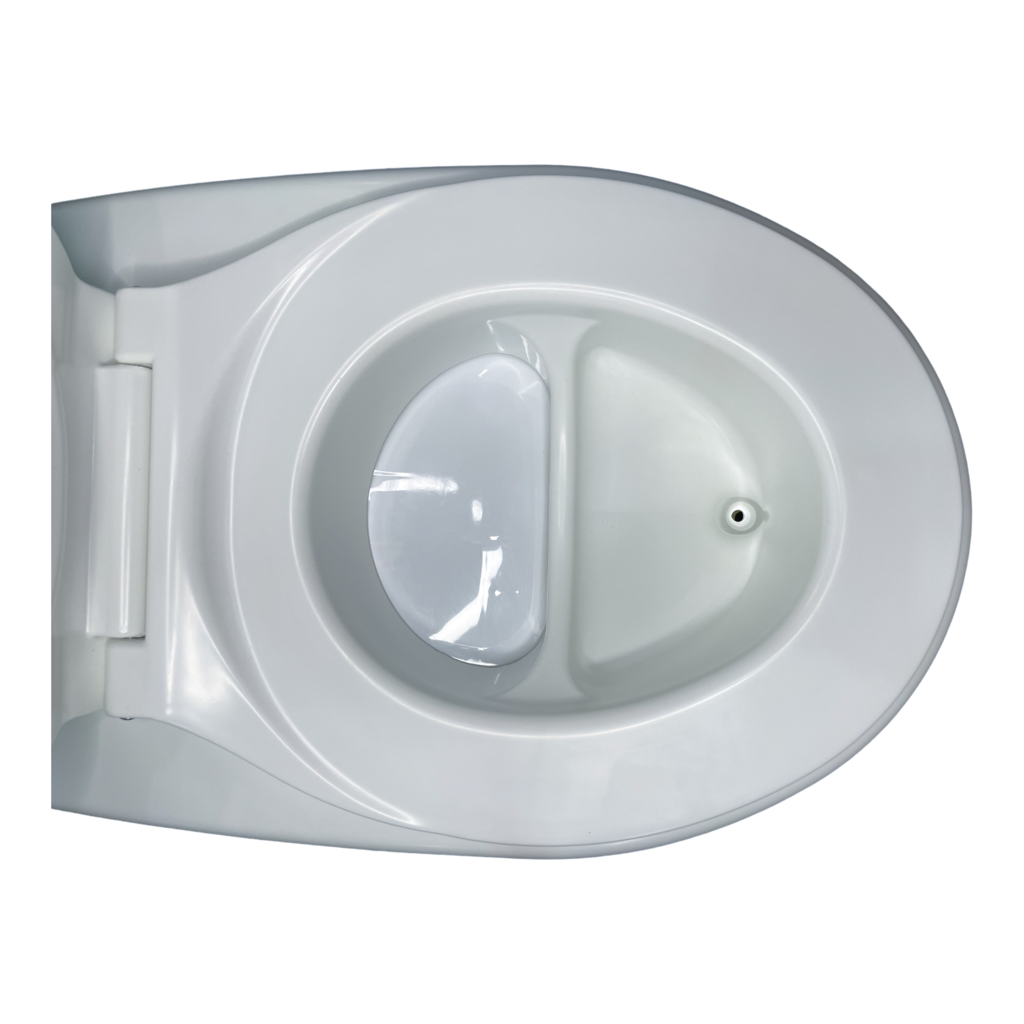

- MUCH EASIER TO CLEAN! Most waterless and composting toilets have a bowl, with a small trap door for solid waste. A mess results, every time. The Thinktank Waterless Composting toilet utilizes a large chute, with vertical walls. Very little or no waste will hit the sides, and clean up is easier. Look at the picture of the massive opening! It needs FAR LESS CLEANING.
- Because the Thinktank Waterless urine diverting toilet is tightly sealed, ingress by insects is virtually impossible. This solves a major problem with other waterless and composting toilets.
- The toilet is incredibly strong and well made. There is really no comparison to most other waterless and composting toilets, which are very lightweight plastic. The shell of the Thinktank is rotationally molded like a white water kayak, or YETI cooler. This is the strongest possible way to build something in plastic. Rated at 350lbs plus. Big guy approved!
- Urine exits the toilet via a drain tube, 7 inches high, at the rear of the toilet. It connects to standard 1″ PVC pipe (not supplied – buy this locally. It’s inexpensive). Run the pipe to the location of your choosing. This is typically a French drain, gray water system, or tank.

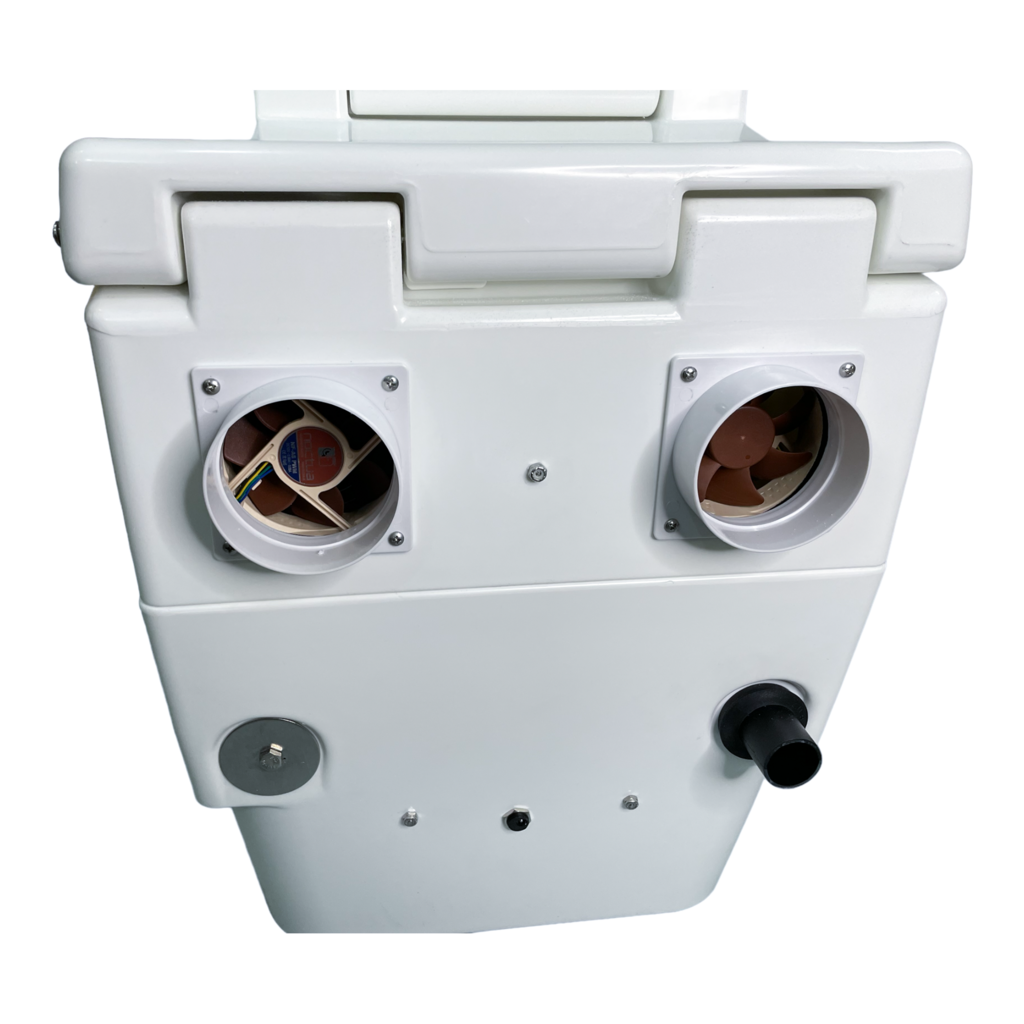

- BETTER LOOKING DESIGN – with vent pipes hidden behind the toilet in most installations (in contrast to other toilets, with vent pipes coming out the top or out the side).
- Thinktank Waterless Toilets use a very high quality fan. It has exceptional output (high cubic feet per minute rating), powerful static pressure (strength of airflow rating), is very quiet, draws low power, and hase an incredibly long life (rated at 150,000 hours). The toilets are designed for the fan to be easily accessible and removable.
- Very quick and easy to empty. Waste is contained inside a compostable bag.
- All metal parts are high quality marine grade stainless steel.
- Works on either 12 volt (a deep cycle 12 volt battery) or 110 volt power (normal household electricity) with the supplied wall transformer.
- Uses inexpensive, widely available compostable bags.
- Never need to add peat moss, saw dust, or turn a handle.
- If you have small children – you can use a standard inexpensive child seat. No need to buy an expensive urine diverting child seat.
- BEST WARRANTY IN THE INDUSTRY. The toilet is covered for 6 years. (3 years on fans. Fans are inexpensive and easy to replace).
What’s in the box?
Most everything you need for a basic, through the wall installation. You might have to buy some pipe at the local hardware store, but you don’t need any expensive accessories from us! Note: all the parts are inside the bucket.
1 – Toilet.
1 – Very detailed, clearly written manual on the installation and use of the toilet.
1 – solid waste container.
1 – lid for solid waste container.
1 – 3 inch X 16 inch PVC exhaust vent pipe with comfort damper valve installed.
1 – 3 inch X 16 inch PVC air intake pipe .
2 – 3 inch – 90 degree elbows.
2 – 3 inch X 1.5 inch PVC rings if you want to mount 90 degree elbows directly to the toilet.
2 – 3 inch X 4 inch sections of PVC pipe to help position the vent hole locations.
2 – aluminum louvered vent caps with insect screens for each 3 inch pipe.
1 – 90 degree rubber coupling for urine drain to 1″ PVC pipe (pipe not included).
1 – straight rubber coupling for urine drain to 1″ PVC pipe (pipe not included).
1 – bag of 6 screws (for mounting to the floor). 4 pan head for the corners. 2 flat head for the center.
1 – 12 volt wires (bare ends, with fuse).
1 – 110-120 volt wall transformer.
1 – package of compostable bags (10 bags in a package).
6 – elastic bands.
YOU WILL NEED TO PURCHASE from a hardware store:
– a small tube of white bathroom caulking to seal the bottom of the toilet.
– 1″ PVC pipe for the urine drain.
– 3″ PVC thin wall sewer pipe (if the included 16 inch long pipes are not sufficient).
Download Installation Manual
